1¡¢Solution |
2¡¢Distribution Mode |
2.1¡¢Bus-style Automatic Rotation |
The robot stays for X minutes (X can be configured). Loading and Unloading |

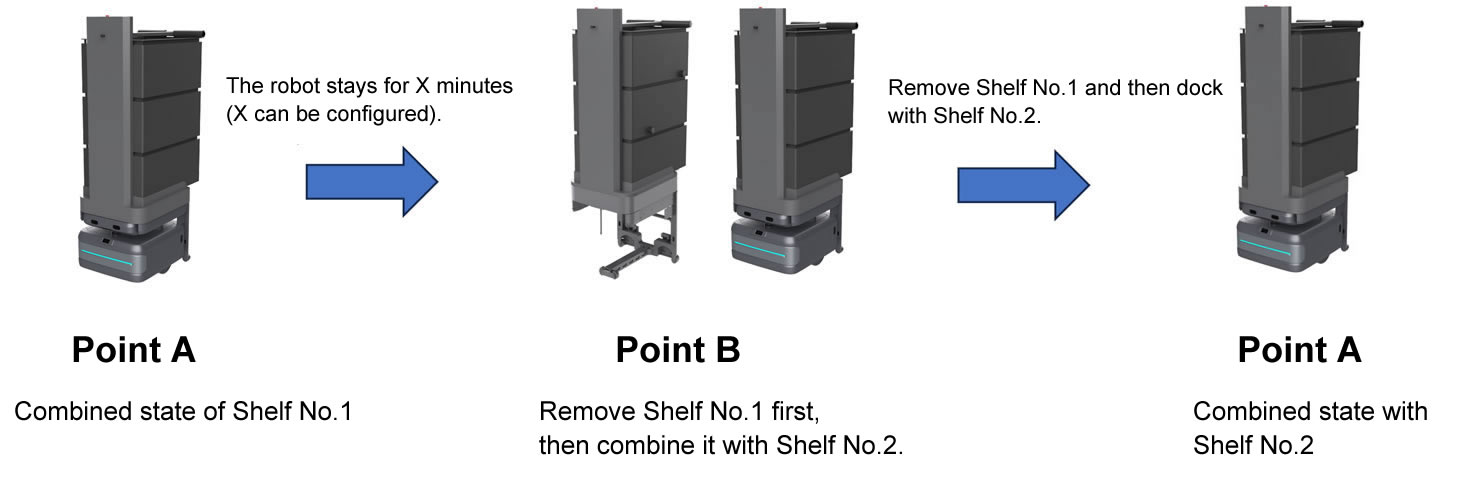

2.2¡¢Cyclic Relay Delivery |
Brief description of the process: The robot stays at Point A in a combined state with shelf No.1 for X minutes. Then it moves from Point A to Point B. After arriving at Point B, it drops shelf
No.1 and then moves to dock with shelf No.2 to complete the combination. After that, it returns from Point B to Point A. After staying at Point A for X minutes, it repeats this process.
During the process, if the battery level is lower than the configured level or it reaches the specified charging time, it will automatically go to the charging pile to recharge.

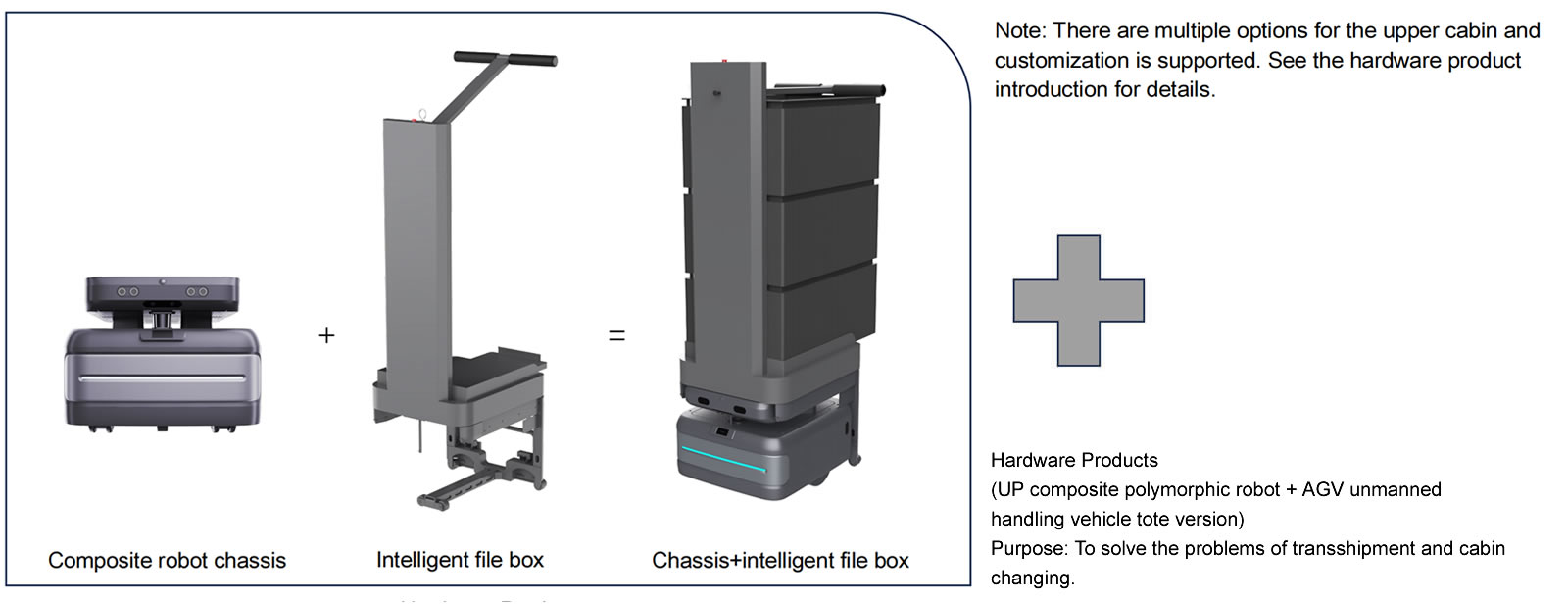

Shelf configuration: 2 units (AGV unmanned handling vehicle tote version or other models); Robot configuration: 1 unit; Physical button configuration: 0 units. |

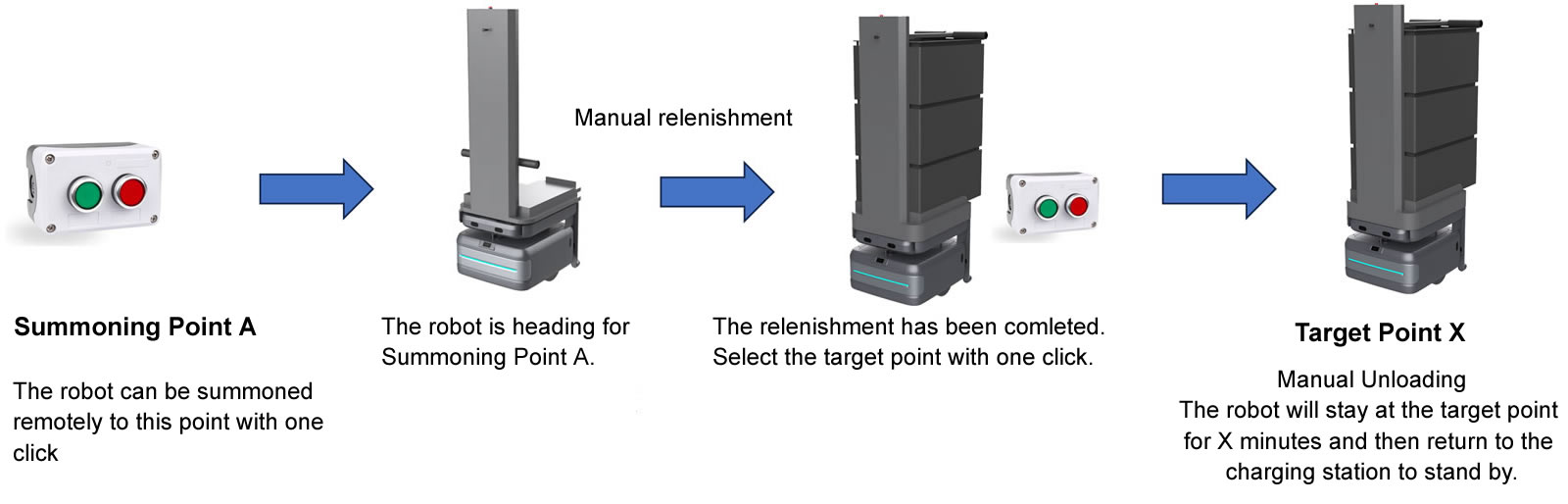

2.3¡¢Summoning for Delivery |
Process Brief: Press the button to summon the robot to the summoning point with one click. Then, select the target point where the robot is required to deliver items by pressing the
button. After completing the delivery task, the robot will return to the charging pile on its own.
Shelf Configuration: 1 unit (AGV unmanned handling vehicle with material box version or other models); Robot Configuration: 1 unit; Physical Button Configuration: 1 - 2 (requiring power supply). |

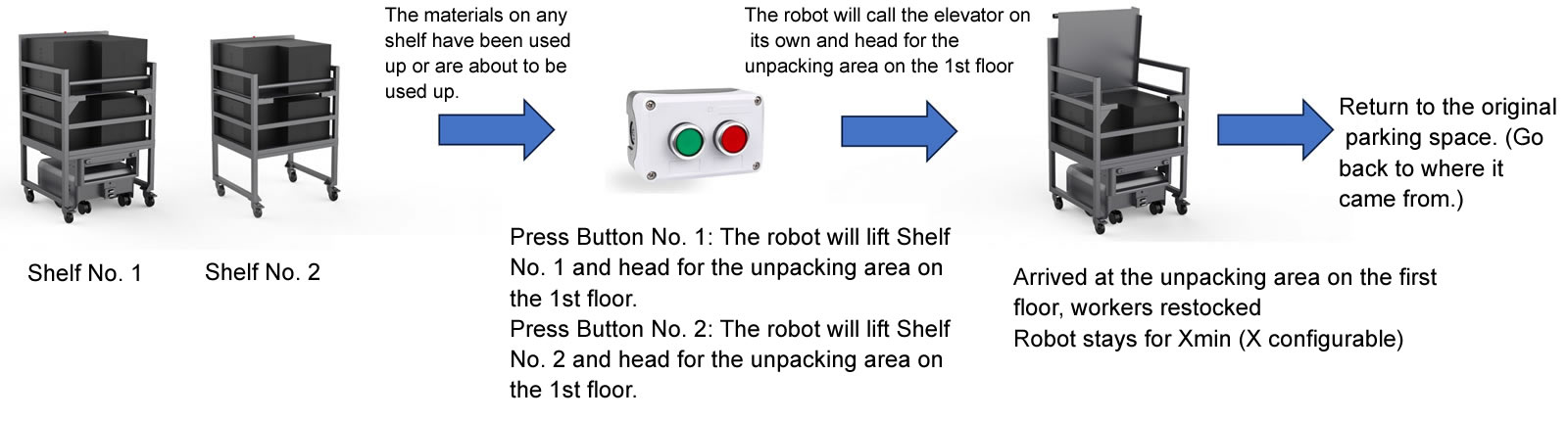

2.4¡¢Replenishing Materials on Demand |
Process Brief: The station staff can trigger the robot to go to the unpacking area on the 1st floor for replenishment with one click via the physical button. After staying for the
specified time, the robot will take the elevator on its own to the left base of SN or the right base of SN.
Station Name: Left Base of SN (for example) Shelf Configuration: 2 units (capable of storing 80 materials when fully loaded) Robot Configuration: 1 unit Task Initiation Button Configuration: 1 (requiring power supply) |
